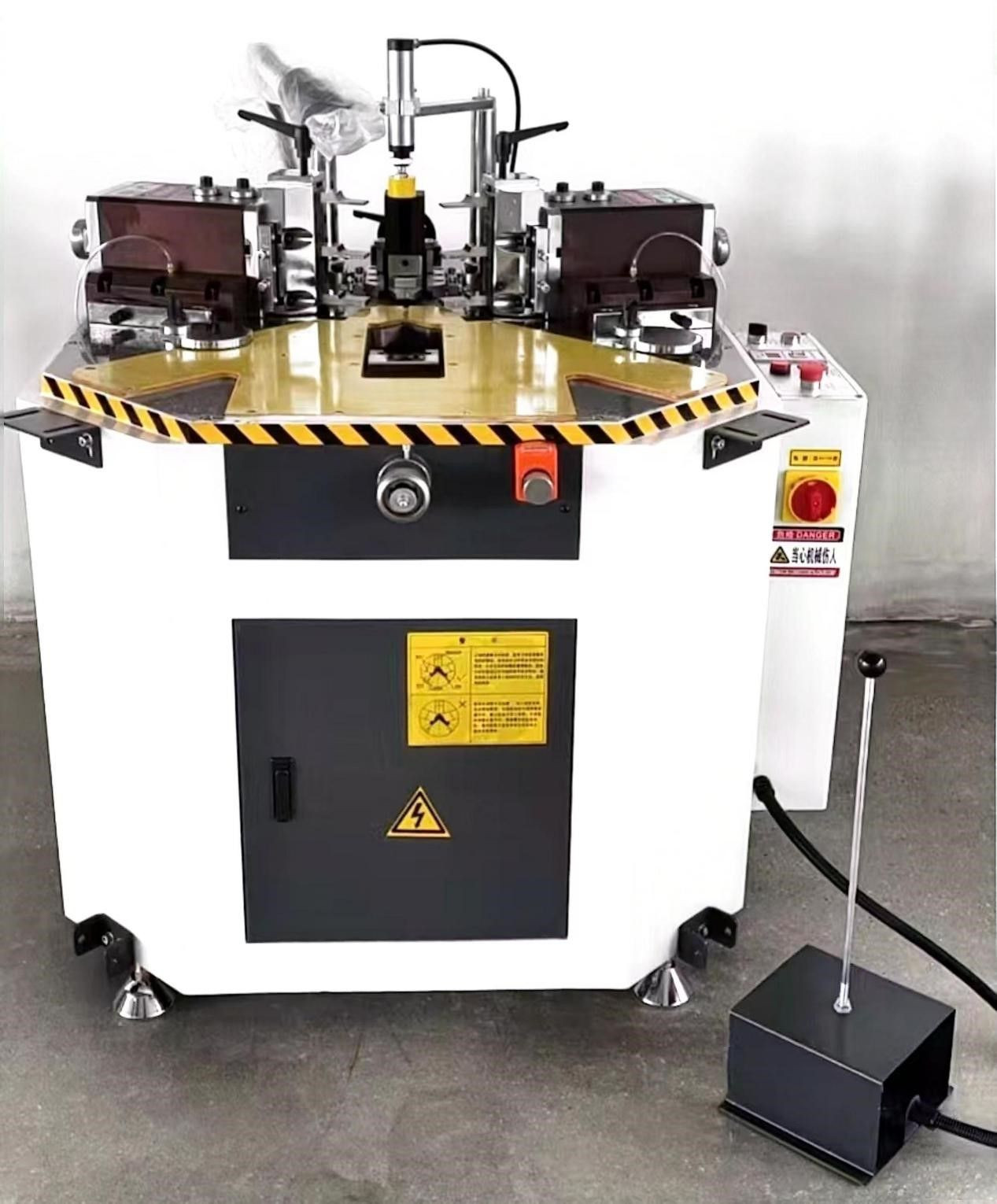

Aluminum Door And Window High-efficiency Heavy-duty Hydraulic Corner Forming Machine Model LMB-180Z

· Input power 3.0kw profile height

  • Color: Default Color
  • Size: Default Size
  • Origin: China
  • Usage: Default Usage
  • Type: Default Type
  • Efficiency: 99.9% Type
Price: 2,550.00-2,700.00 $
New

Description:

·

Input power 3.0kw
profile height 150mm
Air consumption 10L/min
Crimping cylinder stroke 25mm
Total angular pressure 80KN
Rated oil pressure 16Mpa
Air pressure 0.6-0.8Mpa
Oil tank vomule 30L
Main locating block stroke 80mm
Outside dimension 1200x1000x1100mm

Large return trip, large room for adjustment. Strong magnetic angle knife, the knife can be directly adsorbed in the tool holder.

·The cutter head is independently adjustable, and the eating depth is consistent. The synchronization mechanism absolutely guarantees the symmetry of the group angles.

·High pressure, 4.0 material thickness direct penetration.

·The machine adopts hydraulic system, which has the characteristics of high power, large range and stable operation.

·The cylinder rod is scaled, and the tool depth is adjusted accurately.
