Automatic Aluminum Bar Bending Machine

Power supply 380/50hz Air pressure

Color: Default Color
Size: Default Size
Origin: China
Usage: Default Usage
Type: Default Type
Efficiency: 99.9% Type

Price: 11,088.00-11,385.00 $

Category: Vertical Insulating Glass Automatic Sealing Line

Get Inquiry

Automatic aluminum bar bending machine

New

Automatic aluminum bar bending machine

Automatic aluminum bar bending machine

Automatic aluminum bar bending machine

Automatic aluminum bar bending machine

Automatic aluminum bar bending machine

Description:

Power supply	380/50hz
Air pressure	0.7Mpa
Aluminum bar specification	6-27mm
Aluminium frame size	Min200x250mm. Max2500x2500mm
Bending angle error	0.3
Total power	4Kw
Feeding speed	0-9m/min
Data base	sametime set 4 specication x8 size
Overall dimension	10000x2200x2600mm

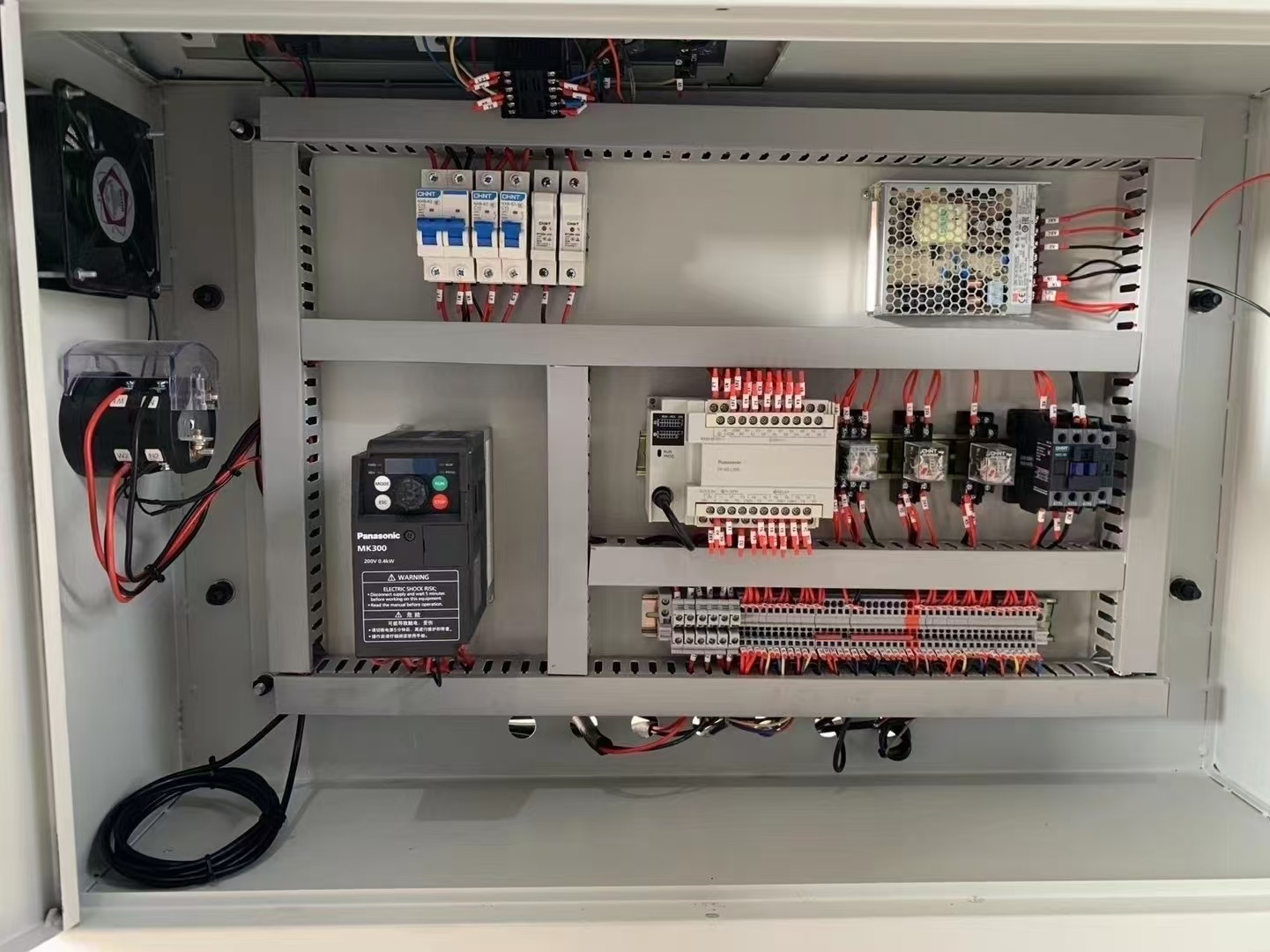

PLC control, touch screen simple operation. Feeding system adopts CNC servo motor,bending angle uses CNC control system. ·Four material storage slots for four different specifications of spacers. ·Bending and cutting automatically avoid the spacer connection, the roundness,automatically cut after bending. ·With manual operation model,easy to debug and repair. It can make triangle,rectangle, regular pentagon, regular hexagon,roundness shape and so on.
